Radiadores multiline, ARBONIA DECOTHERM® PLUS HORIZONTAL

Conoce más sobre DECOTHERM PLUS HORIZONTAL

Descripción de

DECOTHERM PLUS HORIZONTAL

Decotherm Plus horizontal un clásico con un brillo completamente nuevo formado por tubos planos horizontales de 77×10 mm. Calidad mejorada y apariencia visual optimizada gracias a sus tubos planos con un espaciados de tan solo 3 mm y bordes redondeados. Con un diseño de alta calidad y líneas claras see adapta perfectamente al espacio arquitectónico interior moderno y sofisticado. Fabricado con la última tecnología de producción.

  • Material Acero.
  • Acabado THN10 Blanco RAL 9016 o gris antracita RAL 7016.
  • Acabado THN11 Blanco RAL 9016 o gris antracita RAL 7016 y con rejilla superior.
  • Conexiones inferiores centrales 1/2”.

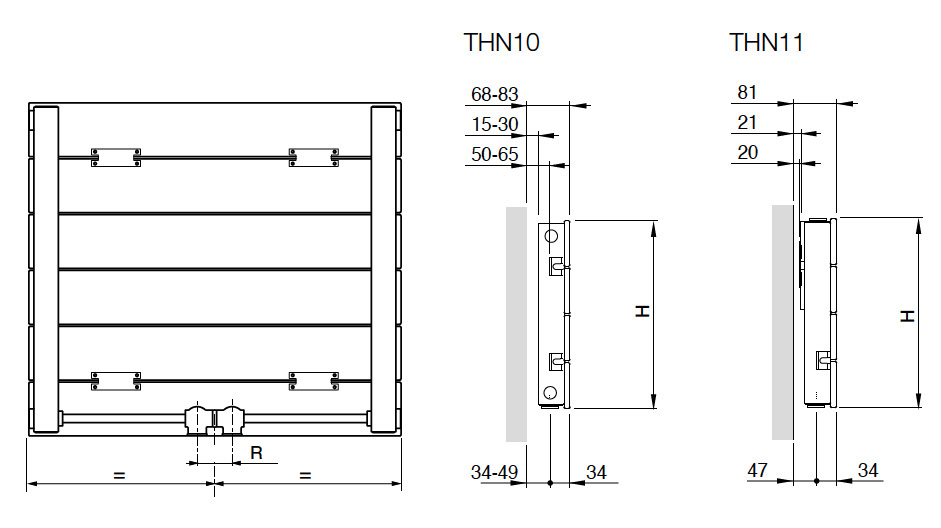

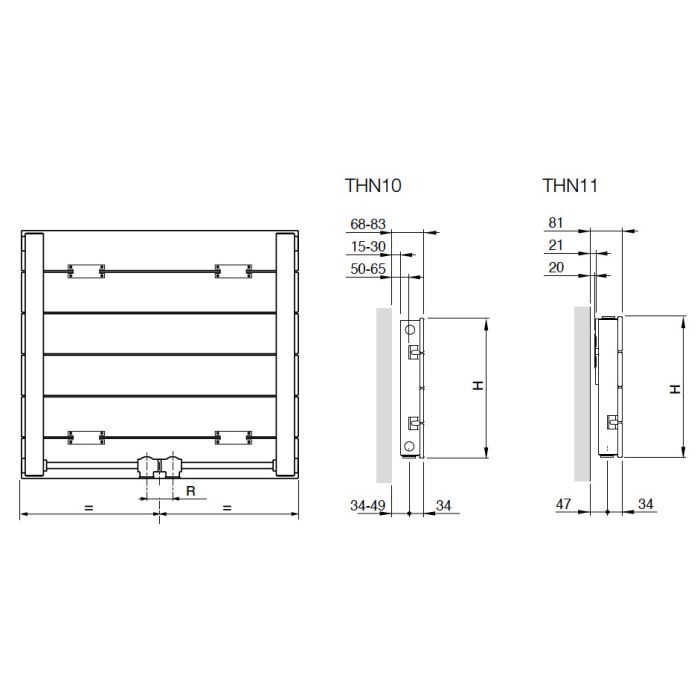

  • Tubo Plano horizontal 77 x 10 mm espaciados 3 mm. El espacido entre tubos es de 3 mm para un efecto visual decorativo y una mayor eficacia radiante.
  • Bordes redondeados en todos los lados con Rmin = 2 mm para una máxima seguridad.
  • Disponible soportes Clase III según la norma VDI 6036 para colegios y edificios públicos.
  • Presión máxima de ejercicio 4 bar.
  • Temperatura máxima de ejercicio 110 ºc.

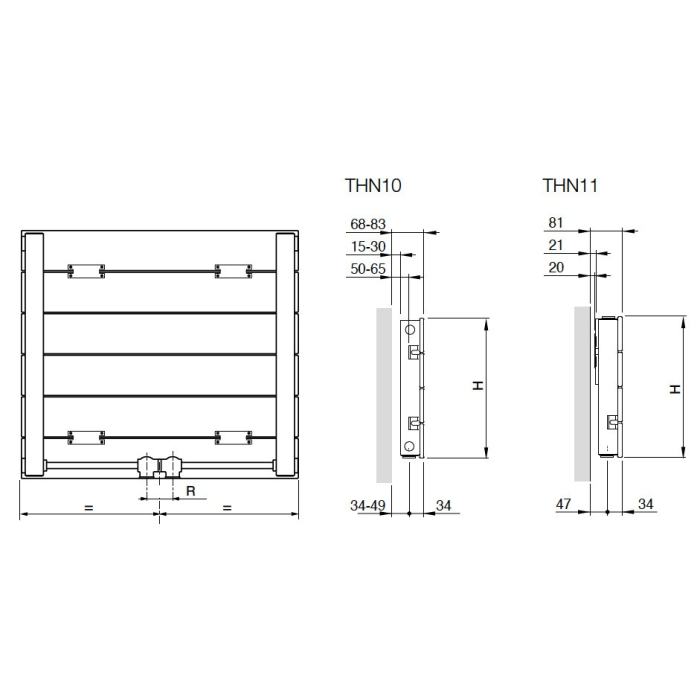

ModeloCódigoAcabadoConfiguraciónAlto (mm) HAncho (mm) LProfundidad (mm) Radiador + soportesDistancia entre ejes (mm) RContenido en agua (l)Peso (Kg)Potencia térmica Φ Δ T 50K 75/65/20°C [W]Potencia térmica Φ Δ T 30K 55/45/20 ºC [W]Exponente nPrecio / Unidad (€)
THN10032120AFTHN10032120AFBlanco RAL 9016 (AF)SIMPLE (THN 10)3171.20068-83503,367,804302241,25498 €
THN10032160AFTHN10032160AFBlanco RAL 9016 (AF)SIMPLE (THN 10)3171.60068-83504,4810,405732991,25587 €
THN10032180AFTHN10032180AFBlanco RAL 9016 (AF)SIMPLE (THN 10)3171.80068-83505,0411,706443371,25706 €
THN10064050AFTHN10064050AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63750068-83502,758,803531841,26463 €
THN10064060AFTHN10064060AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63760068-83503,3010,564232201,26482 €
THN10064070AFTHN10064070AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63770068-83503,8512,324942571,26502 €
THN10064080AFTHN10064080AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63780068-83504,4014,085642941,26523 €
THN10064090AFTHN10064090AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63790068-83504,9515,846353301,26557 €
THN10064100AFTHN10064100AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.00068-83505,5017,607053671,26614 €
THN10064120AFTHN10064120AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.20068-83506,6021,128464401,26656 €
THN10064130AFTHN10064130AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.30068-83507,1522,889174771,26690 €
THN10064140AFTHN10064140AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.40068-83507,7024,649875141,26711 €
THN10160050AFTHN10160050AFBlanco RAL 9016 (AF)SIMPLE (THN 10)1.59750068-83507,2022,008584371,30867 €
THN10160060AFTHN10160060AFBlanco RAL 9016 (AF)SIMPLE (THN 10)1.59760068-83508,6426,401.0295241,30906 €
THN11032120AFTHN11032120AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)317120081503.3614.046553441.25567 €
THN11032160AFTHN11032160AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)317160081504.4818.728744591.25681 €
THN11032180AFTHN11032180AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)317180081505.0421.069835171.25828 €
THN11064050AFTHN11064050AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63750081502.7513.155412781.3515 €
THN11064060AFTHN11064060AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63760081503.315.786493371.3557 €
THN11064070AFTHN11064070AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63770081503.8518.417573891.3592 €
THN11064080AFTHN11064080AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63780081504.421.048654451.3635 €
THN11064090AFTHN11064090AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63790081504.9523.679735001.3673 €
THN11064100AFTHN11064100AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637100081505.526.310815561.3753 €
THN11064120AFTHN11064120AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637120081506.631.5612976671.3832 €
THN11064130AFTHN11064130AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637130081507.1534.1914057231.3870 €
THN11064140AFTHN11064140AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637140081507.736.8215137781.3913 €
THN10032120CFTHN10032120CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)3171.20068-83503,367,804302241,25622 €
THN10032160CFTHN10032160CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)3171.60068-83504,4810,405732991,25734 €
THN10032180CFTHN10032180CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)3171.80068-83505,0411,706443371,25883 €
THN10064050CFTHN10064050CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63750068-83502,758,803531841,26578 €
THN10064060CFTHN10064060CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63760068-83503,3010,564232201,26603 €
THN10064070CFTHN10064070CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63770068-83503,8512,324942571,26628 €
THN10064080CFTHN10064080CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63780068-83504,4014,085642941,26654 €
THN10064090CFTHN10064090CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63790068-83504,9515,846353301,26697 €
THN10064100CFTHN10064100CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.00068-83505,5017,607053671,26767 €
THN10064120CFTHN10064120CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.20068-83506,6021,128464401,26820 €
THN10064130CFTHN10064130CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.30068-83507,1522,889174771,26862 €
THN10064140CFTHN10064140CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.40068-83507,7024,649875141,26888 €
THN10160050CFTHN10160050CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)1.59750068-83507,2022,008584371,301.084 €
THN10160060CFTHN10160060CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)1.59760068-83508,6426,401.0295241,301.133 €
THN11032120CFTHN11032120CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)317120081503.3614.046553441.25709 €
THN11032160CFTHN11032160CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)317160081504.4818.728744591.25851 €
THN11032180CFTHN11032180CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)317180081505.0421.069835171.251.034 €
THN11064050CFTHN11064050CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63750081502.7513.155412781.3644 €
THN11064060CFTHN11064060CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63760081503.315.786493371.3696 €
THN11064070CFTHN11064070CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63770081503.8518.417573891.3740 €
THN11064080CFTHN11064080CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63780081504.421.048654451.3794 €
THN11064090CFTHN11064090CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63790081504.9523.679735001.3842 €
THN11064100CFTHN11064100CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637100081505.526.310815561.3941 €
THN11064120CFTHN11064120CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637120081506.631.5612976671.31.040 €
THN11064130CFTHN11064130CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637130081507.1534.1914057231.31.089 €
THN11064140CFTHN11064140CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637140081507.736.8215137781.31.141 €
AccesorioCódigoDescripciónDetalleDimensionesConexiónConexión a radoadorConexión a racoresAcabadoPrecio / Unidad (€)
PurgadorZT0009CRCon válvula y cabezal de drenaje ajustable. Con sello junta tórica.Acabado cabeza purgador: blanco.G 1/2”Niquelado
PurgadorZT00090003Con válvula y cabezal de drenaje ajustable. Con sello junta tórica.Acabado cabeza purgador: blanco.G 1/2”Blanco
Soporte corto toallasZC00960002Para modelos Decotherm Plus Horizontal o Vertical.35 mmAcero inoxidable
Soportes a pared fijosZB04930004Recomendados para THN90,THN11 y TVN90.Soportes con tacos y tornillos.20 mmBlanco31 €
Soportes a pared fijosZB0493L4CF7016Recomendados para THN90,THN11 y TVN90.Soportes con tacos y tornillos.20 mmColor antracita
Soportes a pared distancia variable.0ZB04930001Recomendados para THN10, THN11, TVN10 y TVN11.Soportes ajuestables con tacos y tornillos.50-65 mmBlanco
Soportes a pared distancia variable.ZB0493L1CF7016Recomendados para THN10, THN11, TVN10 y TVN11.Soportes ajuestables con tacos y tornillos.50-65 mmColor antracita
Tapa embellecedora.0713-0000V00APara válvula 0706N.80 x 115 x 46 mmBlanco13 €
Tapa embellecedora.0713-0000V00SPara válvula 0706N.80 x 115 x 46 mmNegro mate26 €
Cabeza termostática con sensor líquidoN095-00000000M30 x 1,5Blanco21 €
Conexión para tubo de cobre.0281-1900N0C0En latón con o-ring.12 x 24/19Niquelado5 €
Conexión para tubo de cobre.0281-1900N0E0En latón con o-ring.15 x 24/19Niquelado4 €
Conexión para tubo multicapa0283-1900NHF010,5/11 – 16 x 24/19Niquelado6 €
Conexión para tubo multicapa0283-1900NFG012,5/13 – 18 x 24/19Niquelado6 €
Válvula Freestyle monotubo / bitubo.0706NTermostatizable (50 mm a ejes).1/2″24/19Niquelado70 €
  • Presión máxima de ejercicio 4 bar.
  • Temperatura máxima de ejercicio 110 ºc.
ModeloCódigoAcabadoConfiguraciónAlto (mm) HAncho (mm) LProfundidad (mm) Radiador + soportesDistancia entre ejes (mm) RContenido en agua (l)Peso (Kg)Potencia térmica Φ Δ T 50K 75/65/20°C [W]Potencia térmica Φ Δ T 30K 55/45/20 ºC [W]Exponente nPrecio / Unidad (€)
THN10032120AFTHN10032120AFBlanco RAL 9016 (AF)SIMPLE (THN 10)3171.20068-83503,367,804302241,25498 €
THN10032160AFTHN10032160AFBlanco RAL 9016 (AF)SIMPLE (THN 10)3171.60068-83504,4810,405732991,25587 €
THN10032180AFTHN10032180AFBlanco RAL 9016 (AF)SIMPLE (THN 10)3171.80068-83505,0411,706443371,25706 €
THN10064050AFTHN10064050AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63750068-83502,758,803531841,26463 €
THN10064060AFTHN10064060AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63760068-83503,3010,564232201,26482 €
THN10064070AFTHN10064070AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63770068-83503,8512,324942571,26502 €
THN10064080AFTHN10064080AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63780068-83504,4014,085642941,26523 €
THN10064090AFTHN10064090AFBlanco RAL 9016 (AF)SIMPLE (THN 10)63790068-83504,9515,846353301,26557 €
THN10064100AFTHN10064100AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.00068-83505,5017,607053671,26614 €
THN10064120AFTHN10064120AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.20068-83506,6021,128464401,26656 €
THN10064130AFTHN10064130AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.30068-83507,1522,889174771,26690 €
THN10064140AFTHN10064140AFBlanco RAL 9016 (AF)SIMPLE (THN 10)6371.40068-83507,7024,649875141,26711 €
THN10160050AFTHN10160050AFBlanco RAL 9016 (AF)SIMPLE (THN 10)1.59750068-83507,2022,008584371,30867 €
THN10160060AFTHN10160060AFBlanco RAL 9016 (AF)SIMPLE (THN 10)1.59760068-83508,6426,401.0295241,30906 €
THN11032120AFTHN11032120AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)317120081503.3614.046553441.25567 €
THN11032160AFTHN11032160AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)317160081504.4818.728744591.25681 €
THN11032180AFTHN11032180AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)317180081505.0421.069835171.25828 €
THN11064050AFTHN11064050AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63750081502.7513.155412781.3515 €
THN11064060AFTHN11064060AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63760081503.315.786493371.3557 €
THN11064070AFTHN11064070AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63770081503.8518.417573891.3592 €
THN11064080AFTHN11064080AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63780081504.421.048654451.3635 €
THN11064090AFTHN11064090AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)63790081504.9523.679735001.3673 €
THN11064100AFTHN11064100AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637100081505.526.310815561.3753 €
THN11064120AFTHN11064120AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637120081506.631.5612976671.3832 €
THN11064130AFTHN11064130AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637130081507.1534.1914057231.3870 €
THN11064140AFTHN11064140AFBlanco RAL 9016 (AF)SIMPLE + CONVECTOR (THN 11)637140081507.736.8215137781.3913 €
THN10032120CFTHN10032120CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)3171.20068-83503,367,804302241,25622 €
THN10032160CFTHN10032160CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)3171.60068-83504,4810,405732991,25734 €
THN10032180CFTHN10032180CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)3171.80068-83505,0411,706443371,25883 €
THN10064050CFTHN10064050CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63750068-83502,758,803531841,26578 €
THN10064060CFTHN10064060CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63760068-83503,3010,564232201,26603 €
THN10064070CFTHN10064070CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63770068-83503,8512,324942571,26628 €
THN10064080CFTHN10064080CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63780068-83504,4014,085642941,26654 €
THN10064090CFTHN10064090CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)63790068-83504,9515,846353301,26697 €
THN10064100CFTHN10064100CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.00068-83505,5017,607053671,26767 €
THN10064120CFTHN10064120CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.20068-83506,6021,128464401,26820 €
THN10064130CFTHN10064130CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.30068-83507,1522,889174771,26862 €
THN10064140CFTHN10064140CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)6371.40068-83507,7024,649875141,26888 €
THN10160050CFTHN10160050CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)1.59750068-83507,2022,008584371,301.084 €
THN10160060CFTHN10160060CFGris antracita RAL 7016 (CF)SIMPLE (THN 10)1.59760068-83508,6426,401.0295241,301.133 €
THN11032120CFTHN11032120CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)317120081503.3614.046553441.25709 €
THN11032160CFTHN11032160CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)317160081504.4818.728744591.25851 €
THN11032180CFTHN11032180CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)317180081505.0421.069835171.251.034 €
THN11064050CFTHN11064050CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63750081502.7513.155412781.3644 €
THN11064060CFTHN11064060CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63760081503.315.786493371.3696 €
THN11064070CFTHN11064070CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63770081503.8518.417573891.3740 €
THN11064080CFTHN11064080CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63780081504.421.048654451.3794 €
THN11064090CFTHN11064090CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)63790081504.9523.679735001.3842 €
THN11064100CFTHN11064100CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637100081505.526.310815561.3941 €
THN11064120CFTHN11064120CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637120081506.631.5612976671.31.040 €
THN11064130CFTHN11064130CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637130081507.1534.1914057231.31.089 €
THN11064140CFTHN11064140CFGris antracita RAL 7016 (CF)SIMPLE + CONVECTOR (THN 11)637140081507.736.8215137781.31.141 €
AccesorioCódigoDescripciónDetalleDimensionesConexiónConexión a radoadorConexión a racoresAcabadoPrecio / Unidad (€)
PurgadorZT0009CRCon válvula y cabezal de drenaje ajustable. Con sello junta tórica.Acabado cabeza purgador: blanco.G 1/2”Niquelado
PurgadorZT00090003Con válvula y cabezal de drenaje ajustable. Con sello junta tórica.Acabado cabeza purgador: blanco.G 1/2”Blanco
Soporte corto toallasZC00960002Para modelos Decotherm Plus Horizontal o Vertical.35 mmAcero inoxidable
Soportes a pared fijosZB04930004Recomendados para THN90,THN11 y TVN90.Soportes con tacos y tornillos.20 mmBlanco31 €
Soportes a pared fijosZB0493L4CF7016Recomendados para THN90,THN11 y TVN90.Soportes con tacos y tornillos.20 mmColor antracita
Soportes a pared distancia variable.0ZB04930001Recomendados para THN10, THN11, TVN10 y TVN11.Soportes ajuestables con tacos y tornillos.50-65 mmBlanco
Soportes a pared distancia variable.ZB0493L1CF7016Recomendados para THN10, THN11, TVN10 y TVN11.Soportes ajuestables con tacos y tornillos.50-65 mmColor antracita
Tapa embellecedora.0713-0000V00APara válvula 0706N.80 x 115 x 46 mmBlanco13 €
Tapa embellecedora.0713-0000V00SPara válvula 0706N.80 x 115 x 46 mmNegro mate26 €
Cabeza termostática con sensor líquidoN095-00000000M30 x 1,5Blanco21 €
Conexión para tubo de cobre.0281-1900N0C0En latón con o-ring.12 x 24/19Niquelado5 €
Conexión para tubo de cobre.0281-1900N0E0En latón con o-ring.15 x 24/19Niquelado4 €
Conexión para tubo multicapa0283-1900NHF010,5/11 – 16 x 24/19Niquelado6 €
Conexión para tubo multicapa0283-1900NFG012,5/13 – 18 x 24/19Niquelado6 €
Válvula Freestyle monotubo / bitubo.0706NTermostatizable (50 mm a ejes).1/2″24/19Niquelado70 €
  • Para otros colores o conexiones consultar precio y plazo de entrega.

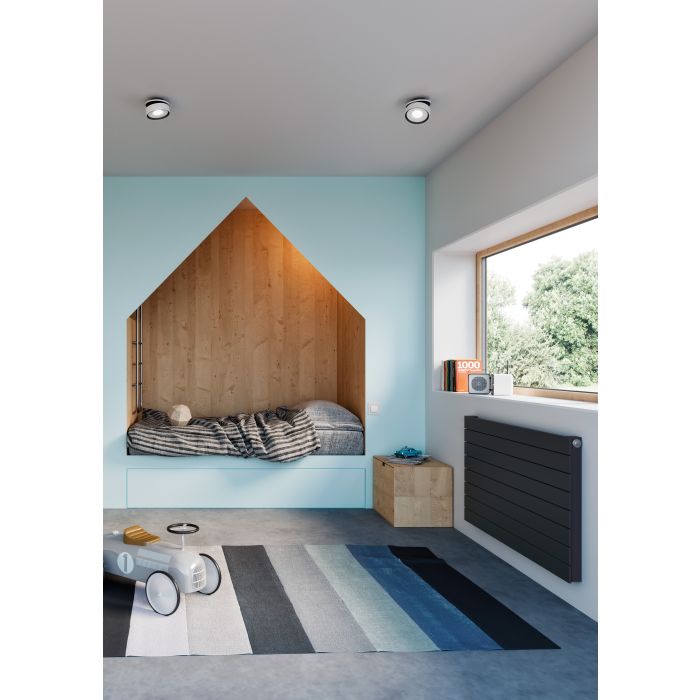

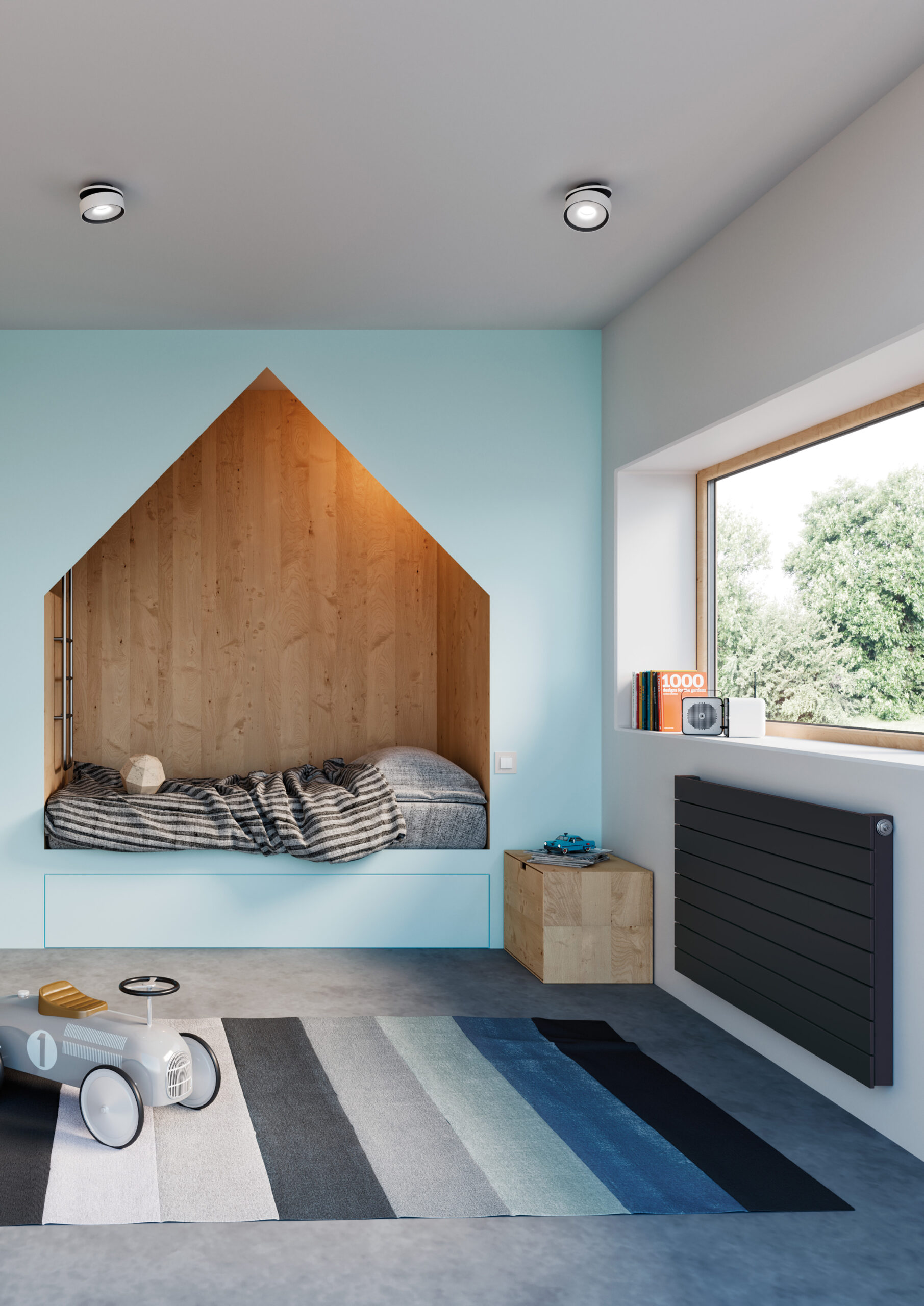

  • Modelo de la imagen THN10064080-CF | Gris antracita RAL 7016.
